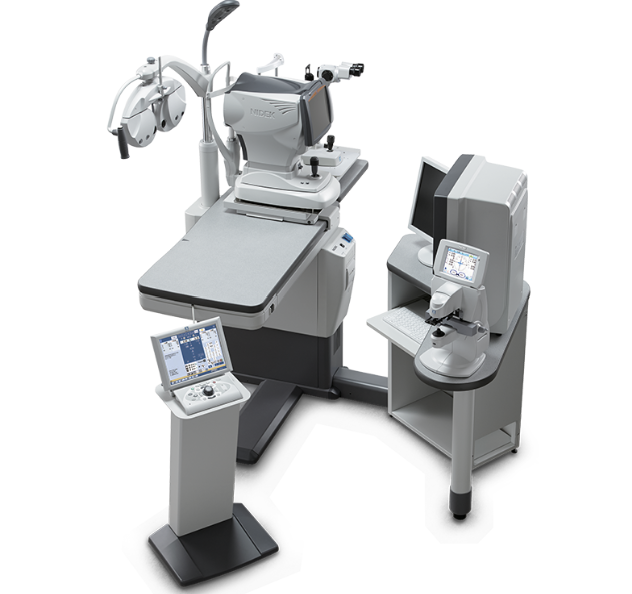

Marco EPIC-6100 Refraction Workstation

Achieve peak efficiency with the EPIC-6100 Refraction Workstation which allows you to combine your digital refractor and acuity chart, autorefractor/keratometer, OPD, and auto lensmeter into one compact system, taking up only a 5×6 foot space. Customize your system to meet the needs of your practice with multiple ARK, NCT, OPD, and lensmeter configuration options.

View Your Quote Cart
Categories: , ,

Description

Marco

EPIC-6100 Refraction Workstation

Achieve peak efficiency with the Marco EPIC-6100 Refraction Workstation which allows you to combine your digital refractor and acuity chart, autorefractor/keratometer, OPD, and auto lensmeter into one compact system, taking up only a 5×6 foot space. Customize your system to meet the needs of your practice with multiple ARK, NCT, OPD, and lensmeter configuration options.

Features:

  • Custom ARK, NCT, OPD and LM configurations
  • Compact, 5’ x 6’ footprint
  • Effortless vertical adjustment of main table
  • Optional second table adds an additional device
  • Remote touchscreen display with intuitive, ergonomic keyboard for simple, one-handed operation
  • Seamless data connectivity for streamlined data flow
  • OPD wavefront maps are displayed for more effective diagnostics and patient education
  • 13.5 JCAHPO credit hours through the Marco training institute
  • Integrates with most EMR/EHR systems

Quick, Effortless Refractions

  • Programmable monocular fogging better suppresses accommodation and allows more realistic refractions with both eyes open
  • Standardization of glare testing ensures consistent and repeatable assessment of glare visual acuities, and contrast sensitivity testing aids in cataract evaluation
  • Tilt screen and angled refractor head for realistic near testing
  • Instantly compares patients’ old and new prescriptions
  • “Favorites” page for quick and easy access to frequently used charts
  • Larger forehead rest range of 25±2 mm accommodates more patients

Streamline Your Process

Without the need to move patients from one device to another, the EPIC-6100 provides a more efficient exam process. You can see more patients without adding more exam lanes.

Customized to Meet Your Needs

Choose from multiple ARK, NCT, OPD, and lensmeter configurations. The optional extra table allows for another device, such as a slit lamp, to be added to the unit.

Unparalleled and Interconnected Technology

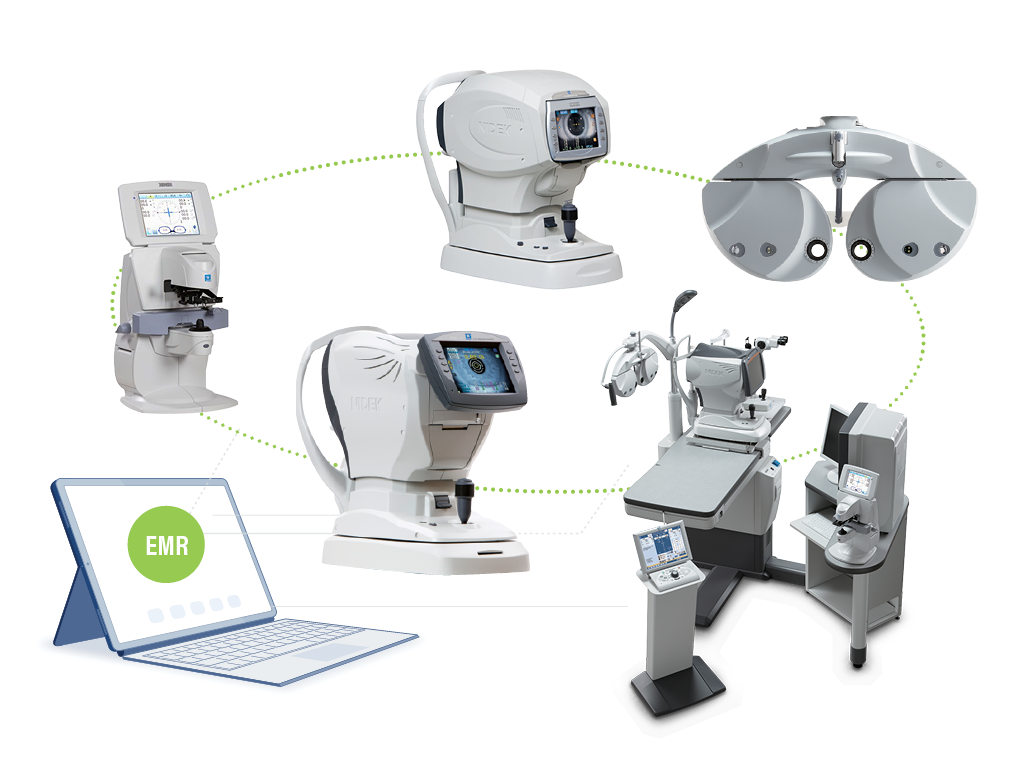

The revolutionary TRS-6100 automated refraction technology is at the core of the EPIC-6100. By integrating digital refraction with NCT, ARK, lensmeter, and OPD, Marco has created the ultimate refraction workstation, connecting all data and transferring it easily to your EMR/EHR.

EPIC-6100 Refraction Workstation Specifications

Measurement Range

Spherical Power -29.00 to +26.75 D (0.12, 0.25, 0.5, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.25, 2.50, 2.75,
3.00 D increments)
Cylindrical Power 0.00 to ±8.75 D (0.25/1.00/2.00/3.00 D increments)
Cylinder Axis 0 to 180° (1, 5, 15° increments)
Pupillary Distance Distance PD: 48 to 80 mm
Near PD (35 cm): 50 to 74 mm
Full convergence Distance PD: 54 to 80 mm
Prism 0.00 to 20.00Δ (0.1/0.5/2Δ increments)

Refractor Head

Auxiliary lenses Cross cylinder: ±0.25D, ±0.50D, ±0.25 D auto cross
Occluder: Available
Pinhole: 2.0 mm in diameter
Color filter: Right red, Left green
Polarizing filter: Right 135° / Left 45°, Right 45° / Left 135°
Fixed cross cylinder: ±0.50 D (fixed with the Axis set at 90º)
Spherical lens for retinoscope: 0D, +1.5D, +2.0 D (selectable by setting)
Maddox rod (red): Right horizontal, Left vertical
Dispersion prism (fixed): Right 6ΔBU, Left 10ΔBI
Dispersion prism for binocular balance: Right 3-10ΔBD, Left 3-10ΔBU
Dispersion prism for horizontal phoria: Right 3-10ΔBU, Left 3-10ΔBD
Dispersion prism for vertical phoria: Right 5-15ΔBI, Left 5-15ΔBI
Binocular open fogging: 0.00 to +9.00 D
Near Gaze Distance 350 to 700 mm (can be changed in 50 mm increments)
Field of Vision 40° (VD = 12mm)
39° (VD = 13.75mm)
Pupillary Distance Distance PD: 48 to 80 mm
Near PD (35 cm): 50 to 74 mm
Full convergence Distance PD: 54 to 80 mm
Forehead Rest Adjustment 25±2 mm
Vertex Distance Scale 12, 13.75, 16, 18, 20 mm
Horizontal Level Adjustment ±2.5°

Control Box

Touch Screen 10.4-inch color LCD

Dimensions & Mass

Refractor Head 16.06 x 4.21 x 10.91” / 7.1 lbs
Control Box 10.23 x 9.06 x 8.15” / 4.6 lbs
Relay Box 7.44 x 8.7 x 2.87 / 3.1 lbs
Printer 3.98 x 3.39 x 4.76 / 1.3 bs

Epic-6100 Table

Main Table Dimensions – 39” (W) x 20” (D) x 27” to 34” (H)
Drawer Space – 28” (W) x 9.5” (D) x 2” (H) inside space
Vertical Movement – Motorized
Refractor Head Lift Arm
Vertical Movement Range
25” to 37” from the top of the table
Near Point Lamp
Light Source
White LED
Full Dimensions and Weight 39” (W) x 62” (D) x 52” to 71” (H), 264.5 lbs
Power Supply Voltage – 100 to 120 V AC
Frequency – 50/60 Hz
Power Consumption – 600 VA at maximum (including power consumption of connected devices)

Additional information

Weight 11 lbs
Dimensions 20.5 × 18 in
